Platinum Metals Rev., 1983, 27, (3), 108

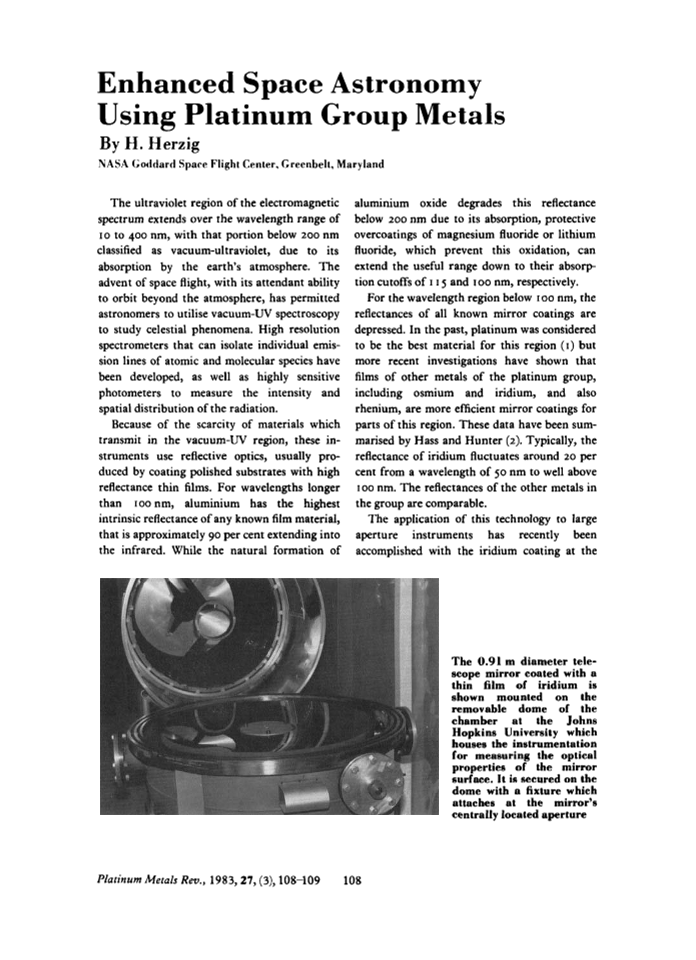

Enhanced Space Astronomy Using Platinum Group Metals

  • By H. Herzig
  • NASA Goddard Space Flight Center, Greenbelt, Maryland

The ultraviolet region of the electromagnetic spectrum extends over the wavelength range of 10 to 400 nm, with that portion below 200 nm classified as vacuum-ultraviolet, due to its absorption by the earth’s atmosphere. The advent of space flight, with its attendant ability to orbit beyond the atmosphere, has permitted astronomers to utilise vacuum-UV spectroscopy to study celestial phenomena. High resolution spectrometers that can isolate individual emission lines of atomic and molecular species have been developed, as well as highly sensitive photometers to measure the intensity and spatial distribution of the radiation.

Because of the scarcity of materials which transmit in the vacuum-UV region, these instruments use reflective optics, usually produced by coating polished substrates with high reflectance thin films. For wavelengths longer than 100 nm, aluminium has the highest intrinsic reflectance of any known film material, that is approximately 90 per cent extending into the infrared. While the natural formation of aluminium oxide degrades this reflectance below 200 nm due to its absorption, protective overcoatings of magnesium fluoride or lithium fluoride, which prevent this oxidation, can extend the useful range down to their absorption cutoffs of 115 and 100 nm, respectively.

For the wavelength region below 100 nm, the reflectances of all known mirror coatings are depressed. In the past, platinum was considered to be the best material for this region (1) but more recent investigations have shown that films of other metals of the platinum group, including osmium and iridium, and also rhenium, are more efficient mirror coatings for parts of this region. These data have been summarised by Hass and Hunter (2). Typically, the reflectance of iridium fluctuates around 20 per cent from a wavelength of 50 nm to well above 100 nm. The reflectances of the other metals in the group are comparable.

The application of this technology to large aperture instruments has recently been accomplished with the iridium coating at the Goddard Space Flight Center of the 0.91 m diameter telescope mirror of a spectrophotometer flown by astronomers from the Johns Hopkins University on a NASA sounding rocket (3).

The 0.91 m diameter telescope mirror coated with a thin film of iridium is shown mounted on the removable dome of the chamber at the Johns Hopkins University which houses the instrumentation for measuring the optical properties of the mirror surface. It is secured on the dome with a fixture which attaches at the mirror’s centrally located aperture

Because of their high melting points, the platinum group metals cannot be evaporated by conventional resistance heating techniques used for the vacuum deposition of thin films, since they will alloy with the tungsten heater used for this purpose and cause heater failure. Instead, an electron bombardment technique has been successfully used to prepare pure films (3,4). The evaporation source used, as well as a number of other types commonly used for the deposition of thin films, produces a vapour distribution which varies as the cosine of the emission angle (5). Consequently, when the element to be coated is large compared with the vapour source, as it was in the aforementioned application, realisation of a uniform film thickness can be difficult. Fortunately, once the film thickness of iridium exceeds 10 nm, its reflectance becomes insensitive to further increases (4). Using this information, a reflectance distribution with a coefficient of variation below 1.5 per cent was attained, despite a twofold variation in film thickness over the surface of the mirror.

While an increase in vacuum-ultraviolet reflectance from about 10 per cent for an over-coated aluminium mirror to 20 per cent or more for iridium or other metals in the platinum group may seem quite modest, it represents a significant improvement to scientists studying weak signals from distant sources with instruments using multiple reflections in the optical train.


  1. 1
    G. F. Jacobus,, R. P. Madden and L. R. Canfield, J. Opt. Soc. Am., 1963, 53, 1084
  2. 2
    G. Hass, and W. R. Hunter,, in “ Space Optics ”, Proc. Ninth Int. Congr. of the Int. Commission for Optics, Santa Monica, California, Oct., 1972, ed. B. J. Thompson and R. R. Shannon, Natl. Acad. Sci., Washington, D.C., 1974, pp. 525 – 553
  3. 3
    H. Herzig and R. S. Spencer, Appl. Opt., 1982, 21, (1), 15
  4. 4
    G. Hass,, G. F. Jacobus and W. R. Hunter, J. Opt. Soc. Am., 1967, 57, (6), 758
  5. 5
    L. Holland, “ Vacuum Deposition of Thin Films ”, Wiley, New York, 1960, p. 141
